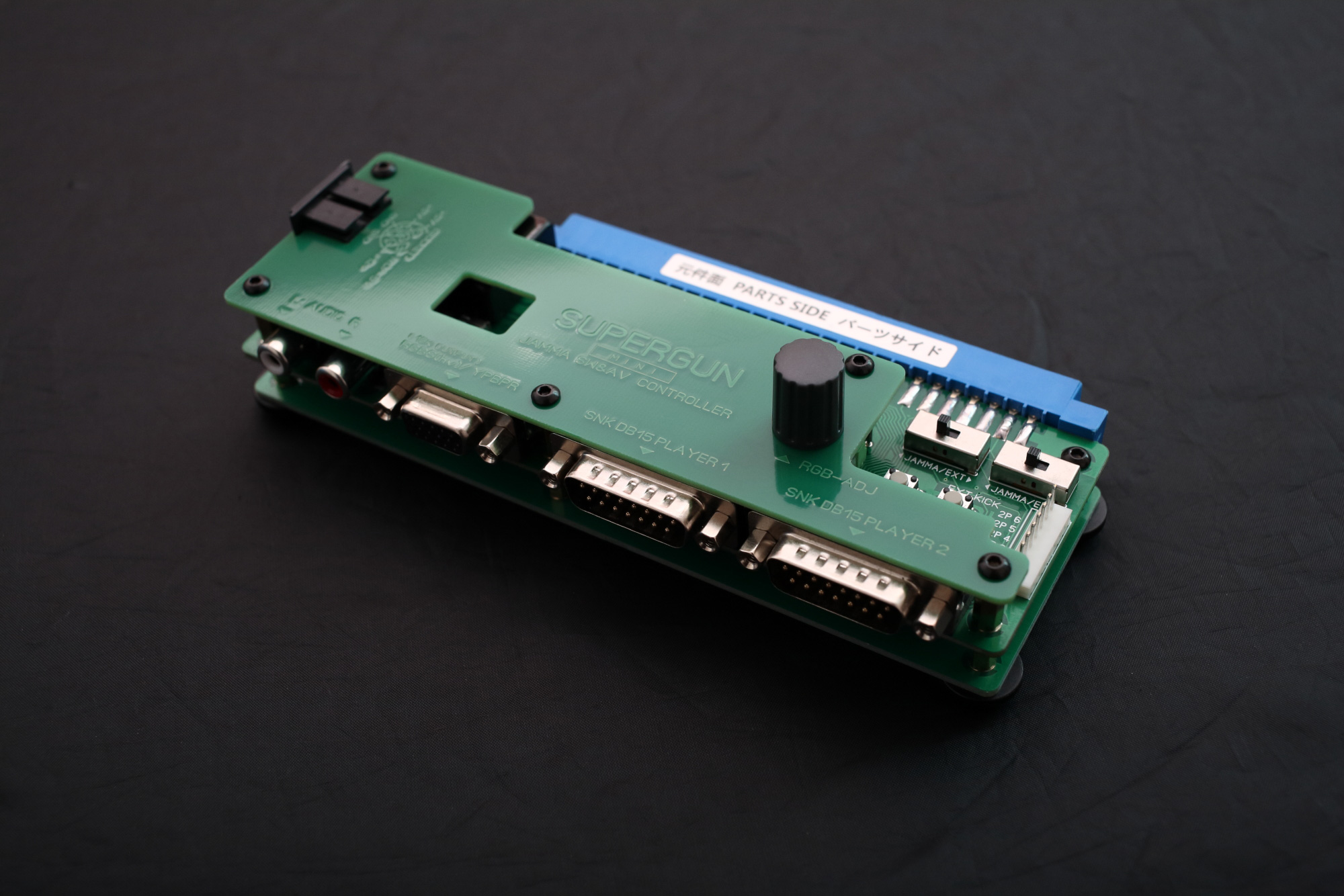

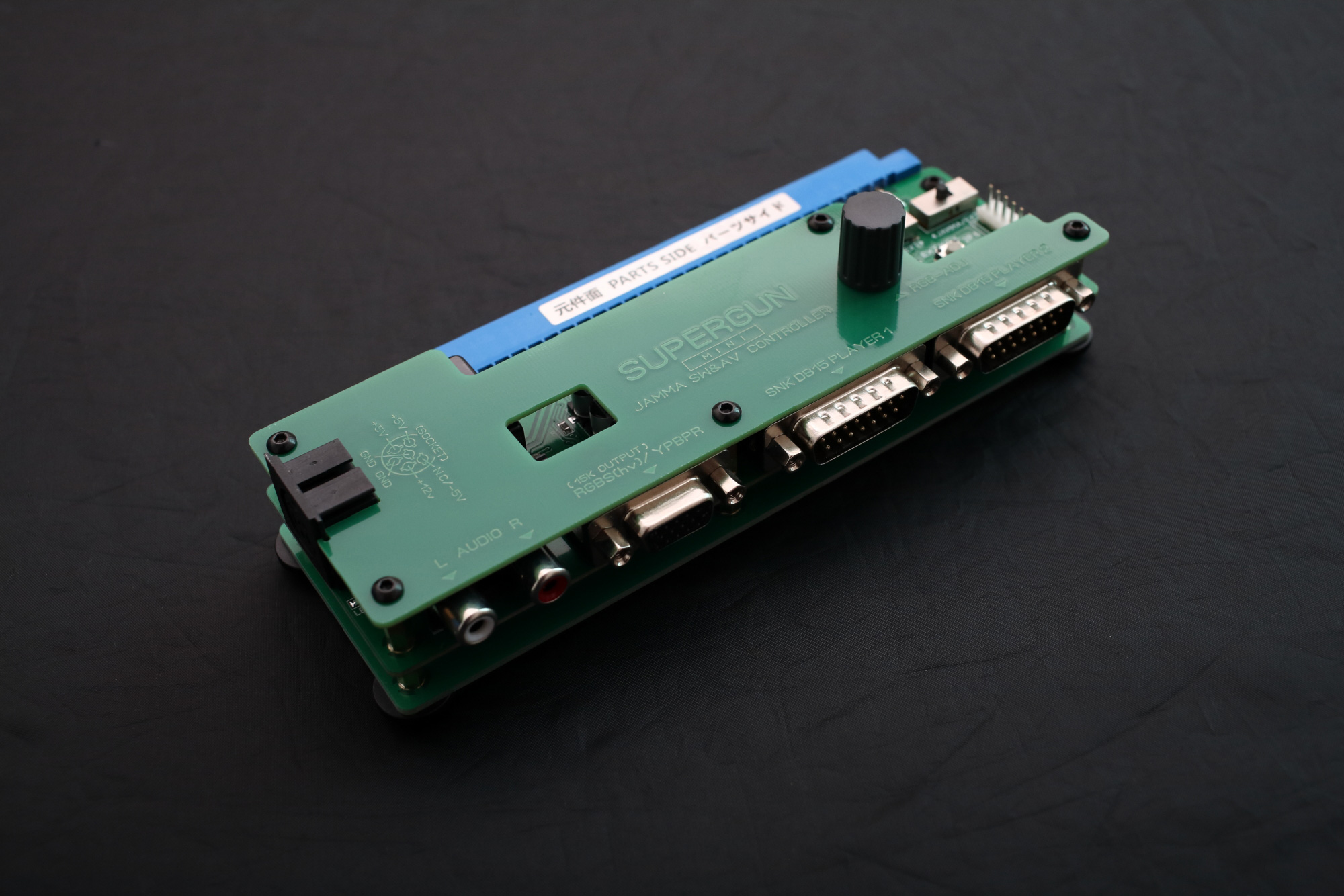

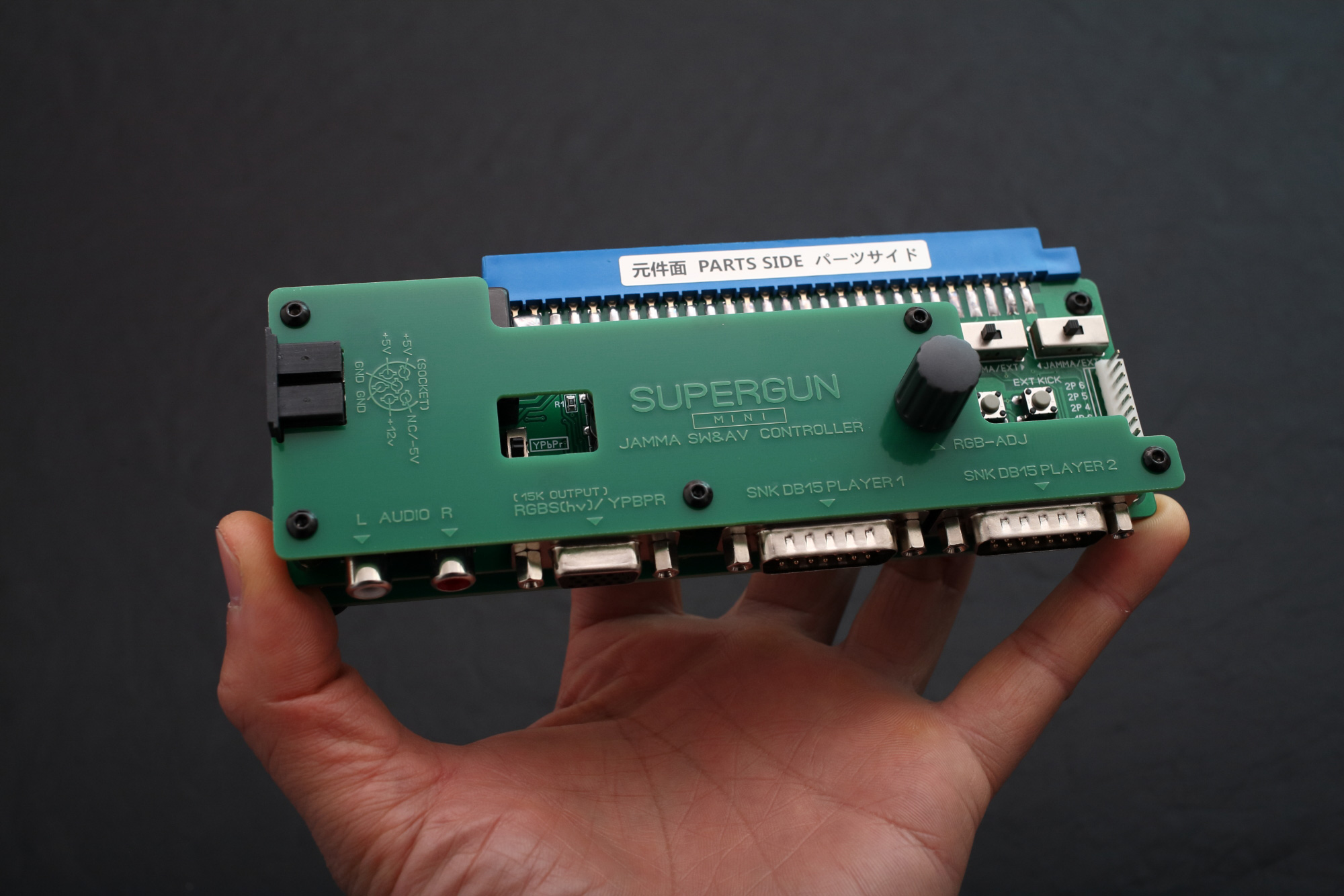

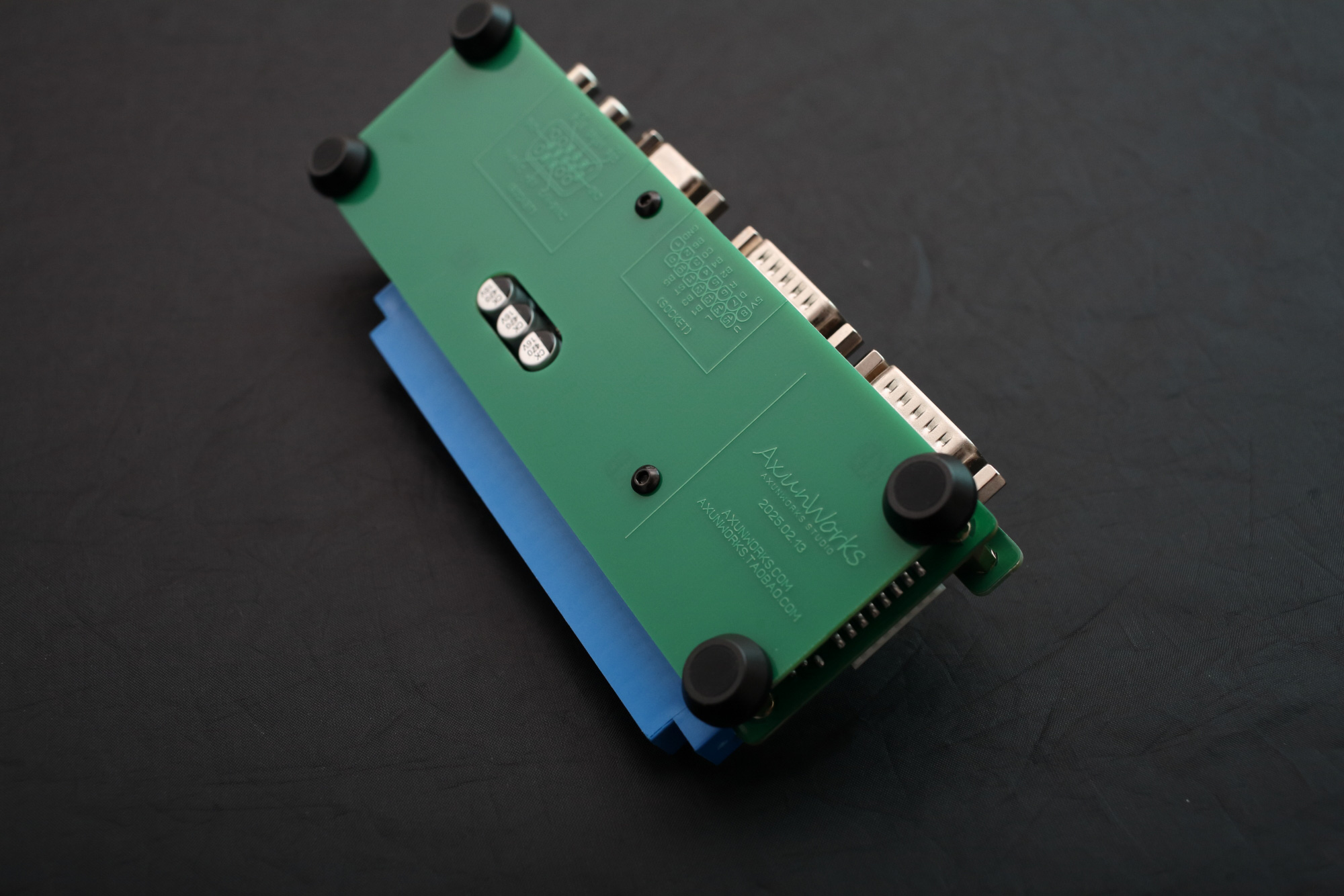

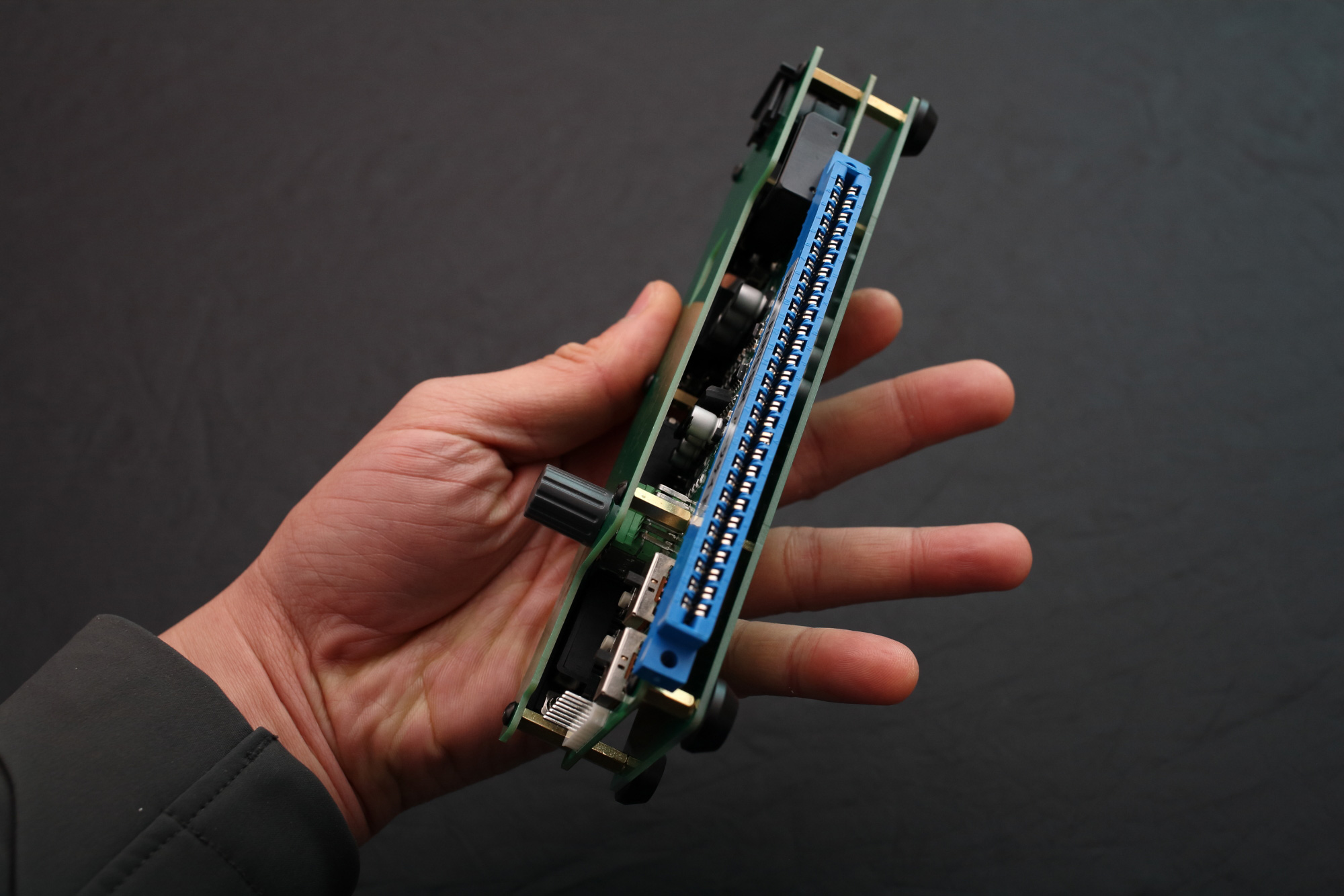

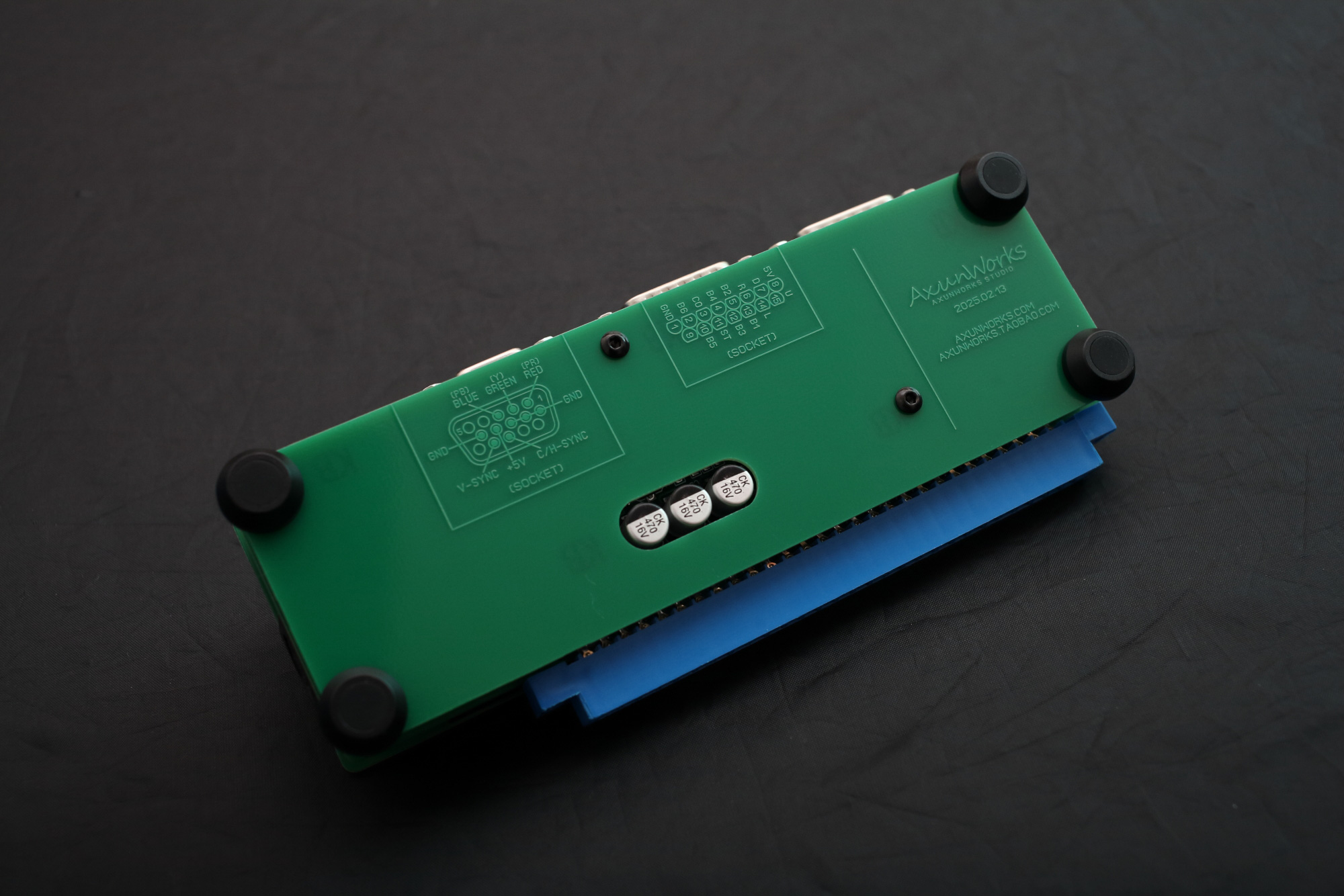

Arcade JAMMA SUPERGUN-MINI control board

Copy and share this link on social network or send it to your friends

Copy

Arcade JAMMA SUPERGUN-MINI control board Item NO.: 669501

5.0
(1)
Write a Review
US$ 90.00
color:
Supergun + video cable + PSU DB-USB(blue) DB-USB(green) CPS1 kick harness CPS2、3 kick harness STV kick harness VGA TO VGA + 2RCA TO 3.5mm CABLE(Connect to OSSC)
Quantity:
Shipping Cost:
Estimate Shipping Cost
Product Detail
Product Name Arcade JAMMA SUPERGUN-MINI control board
Item NO. 669501
Weight 1 kg = 2.2046 lb = 35.2740 oz
Category custom made 定制 > SUPERGUNS / CBOX
Creation Time 2021-04-06

INCLUDES:

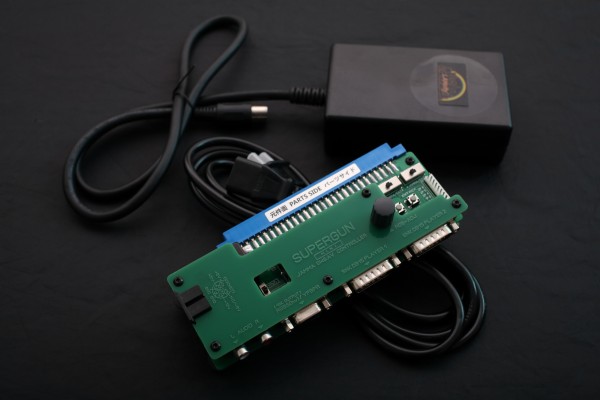

Supergun-MINI, video cable (RGB,RGBS,RGBHV,YPBPR) and PSU (ALL YOU NEED TO GET PLAYING)


If you need a more professional power supply, you can buy it separately:
http://www.axunworks.com/h-product-detail.html?goods_id=669351&variant=4595943


FEATURES:

- Support standard JAMMA PCB
- Control interface DB15,
- The power DC input port is DIN6P, including 12V, 5V, -5V, GND
- The output video signal is 15Khz color RGB, RGBS , RGBHV, YPBPR (One cable does it all)
- VGA TO VGA + 2RCA TO 3.5mm CABLE(Connect to OSSC)
- Kick harness:SUPPORTS CPS1, CPS2/3, and Sega STV Kick harness (SOLD SEPARATELY)
- RGB MOD Switch = Switch between RGB and YPBPR Video Output 15kHz
- RGB ADJ = Adjust the brightness of RGB
- RCA Stereo/Mono Output



All orders are made by hand, and after the order is placed and paid, hand-made will be arranged in order. I will deliver the goods as soon as possible under the premise of preserving the quality and arrangement, and update the waybill number on the website as soon as possible. Choosing high-cost transportation is for better tracking and arrival, and does not mean that the goods can be shipped immediately after placing the order. We need time to make it. Thank you for your understanding and waiting!





2021-07-10

Ha****in

Got one of these back at the end of march to go with the PGM i picked up - everything is flawless about it. plug and play, had no issues whatsoever. Incredible device, pairs very well with the usb decoder for extremely easy and minimal setups. Highly recommend, worth the wait (approximately a month and a half from order to it arriving)
Service:Thank you for your support and glad you can like it
