Game control DB15 to USB Item NO.: 669377

FEATURES:

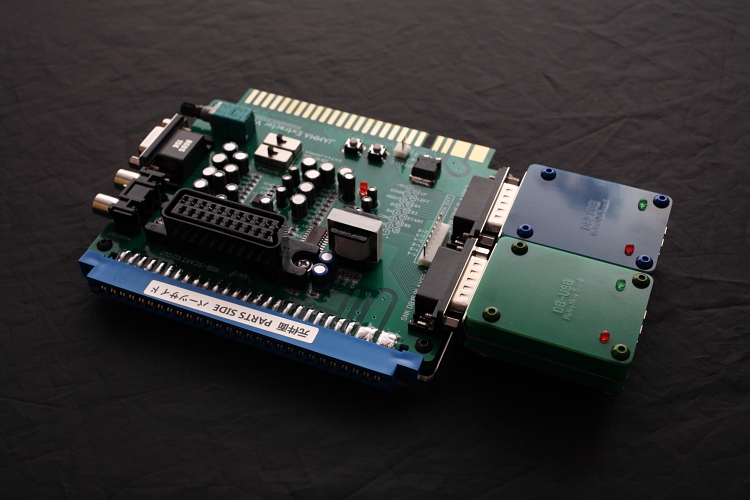

Allows USB controllers and arcade sticks to be used on DB15 ports on superguns.

Button Config:

Press and hold any three buttons without letting go, and turn on the power. Wait until the green light flashes, you can enter the desired 1-6 button config you want.

(If you want to set up in the middle of the game, you can unplug and connect the USB plug to replace the power switch step)

Controllers Supported:  (Anything PS4 works) +
These are the controllers we tested so far:
Razer Panthera
Victrix Pro FS
Qanba Dragon / Obsidian
PS4 Pad Support
Official MS XBOX-ONE pad
HORI RAP4 PS4 stick
Hori FPS Pro PS4 pad
Venom PS4 stick
Sanwa GGXRD PS4 stick
3rd Party PS3 support
PS3 / X360 support (Madcatz, etc...)
Logitech / Logicool controllers

DB15 function customization is as follows:
1: GND
2: BUTTON 6
3: COIN
4: BUTTON 4/SNK-D
5: BUTTON 2/SNK-B
6: RIGHT
7: DOWN
8: +5V
9: N/C
10: BUTTON 5
11: START
12: BUTTON 3/SNK-C
13: BUTTON 1/SNK-A
14: LEFT
15: UP

---

All orders are made by hand, and after the order is placed and paid, hand-made will be arranged in order. I will deliver the goods as soon as possible under the premise of preserving the quality and arrangement, and update the waybill number on the website as soon as possible. Choosing high-cost transportation is for better tracking and arrival, and does not mean that the goods can be shipped immediately after placing the order. We need time to make it. Thank you for your understanding and waiting!

---
