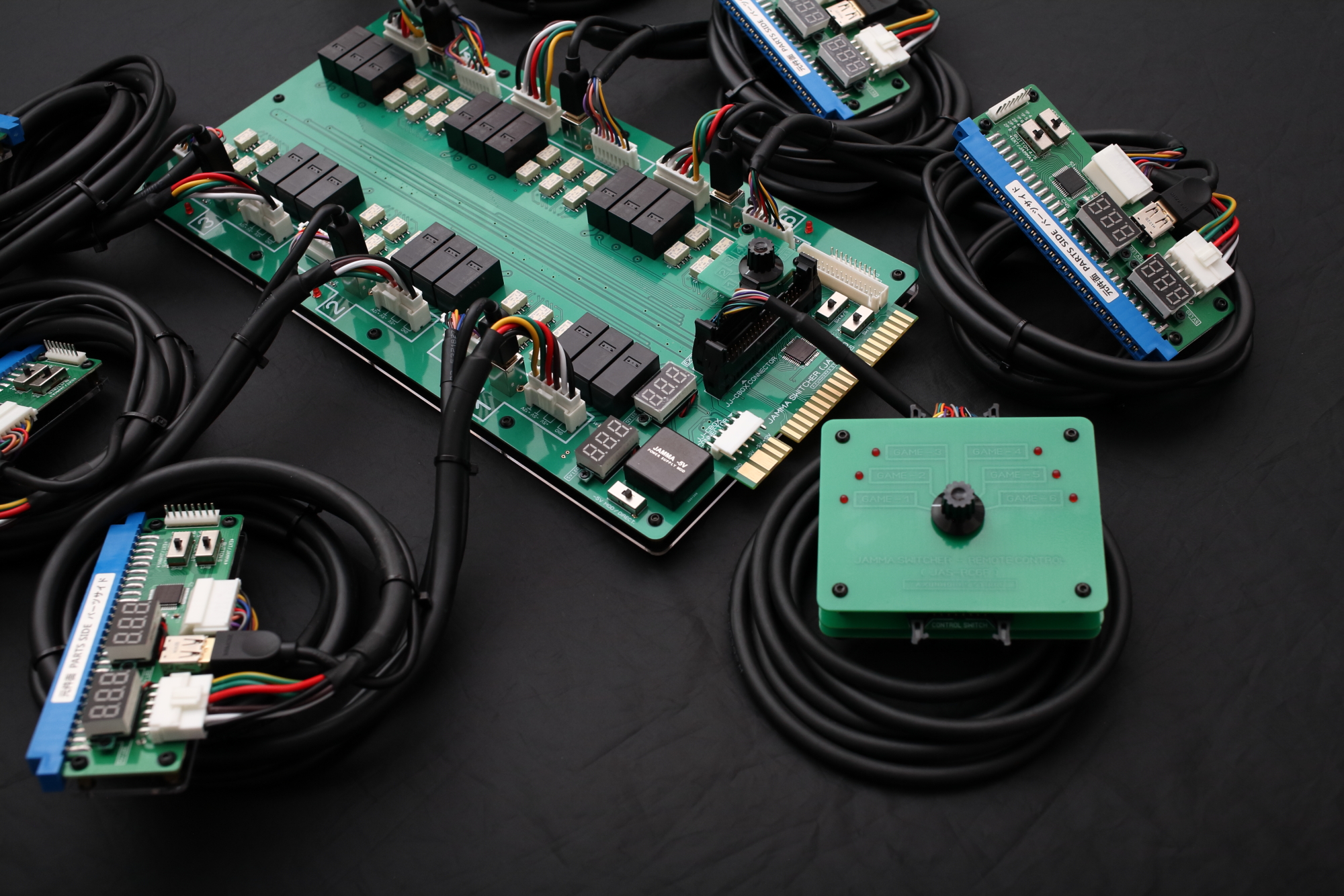

JAMMA Switcher Kits Item NO.: 1492374

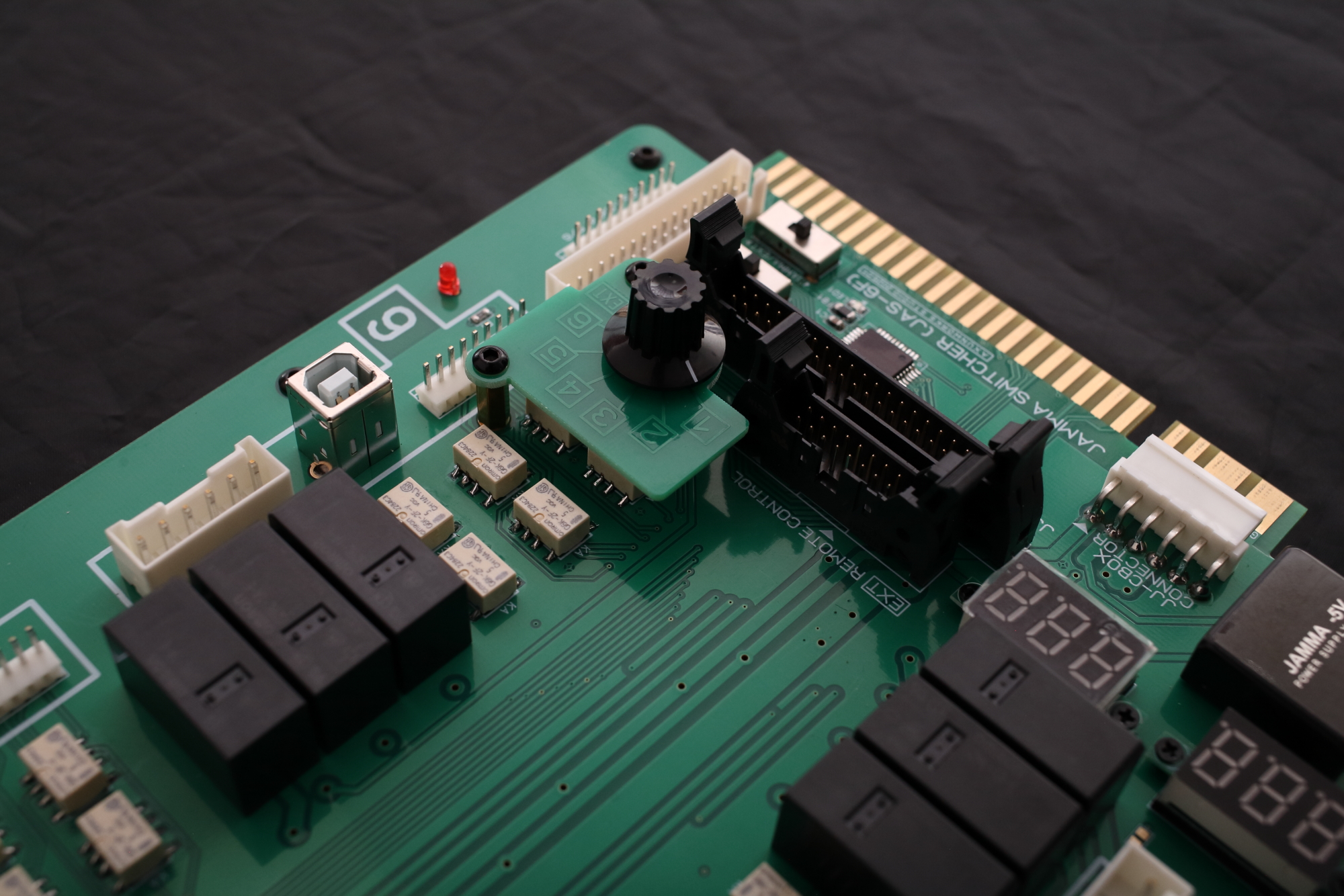

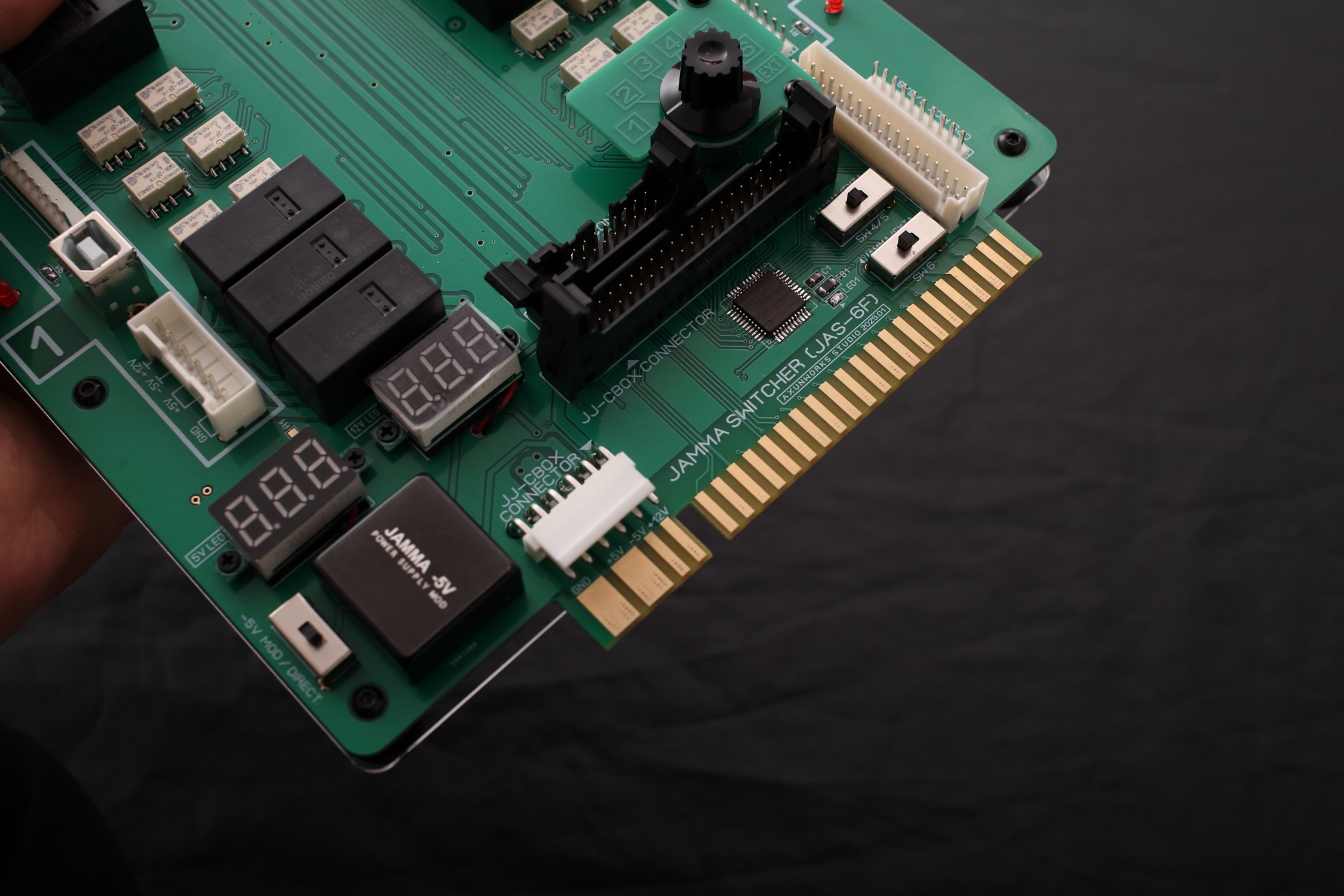

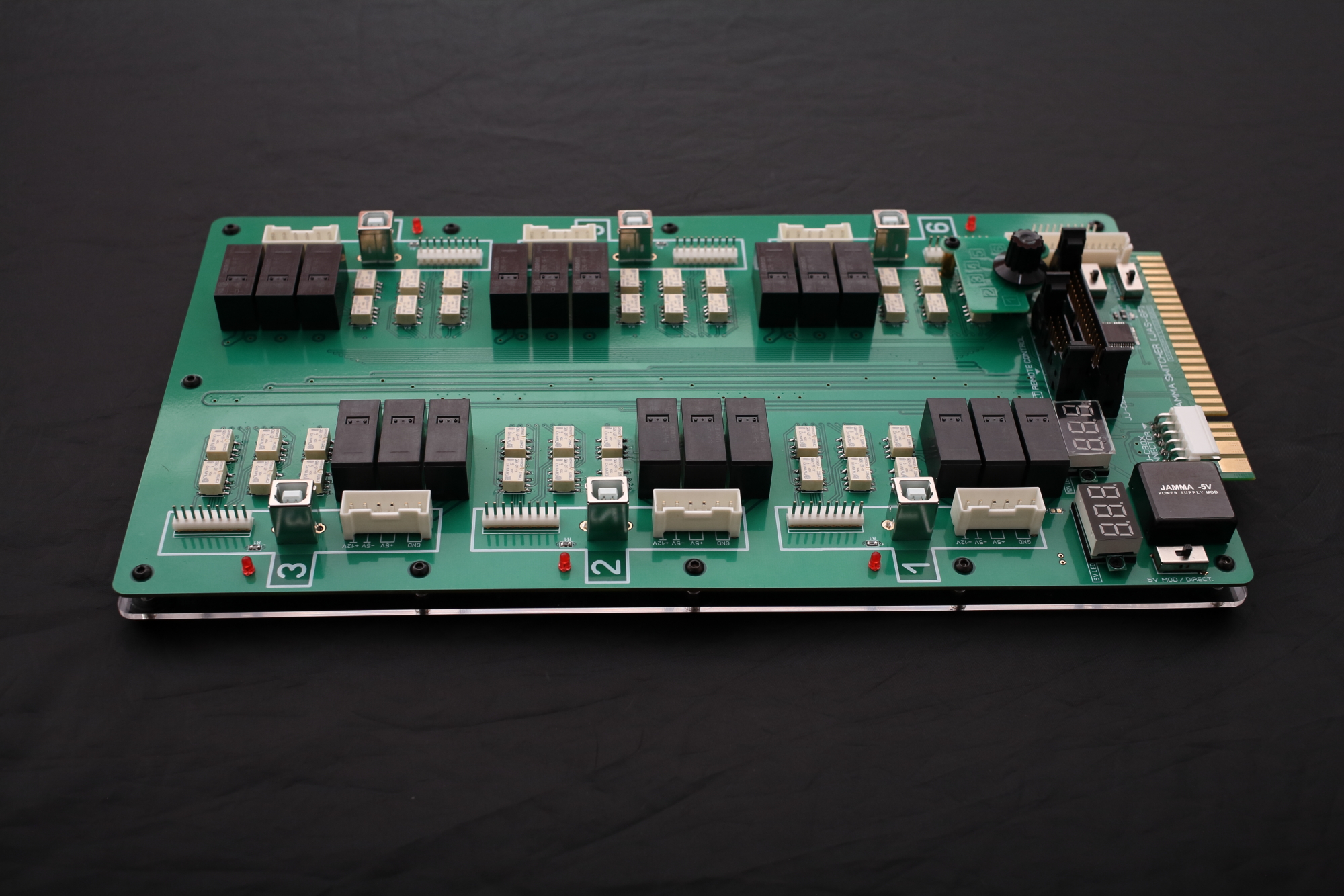

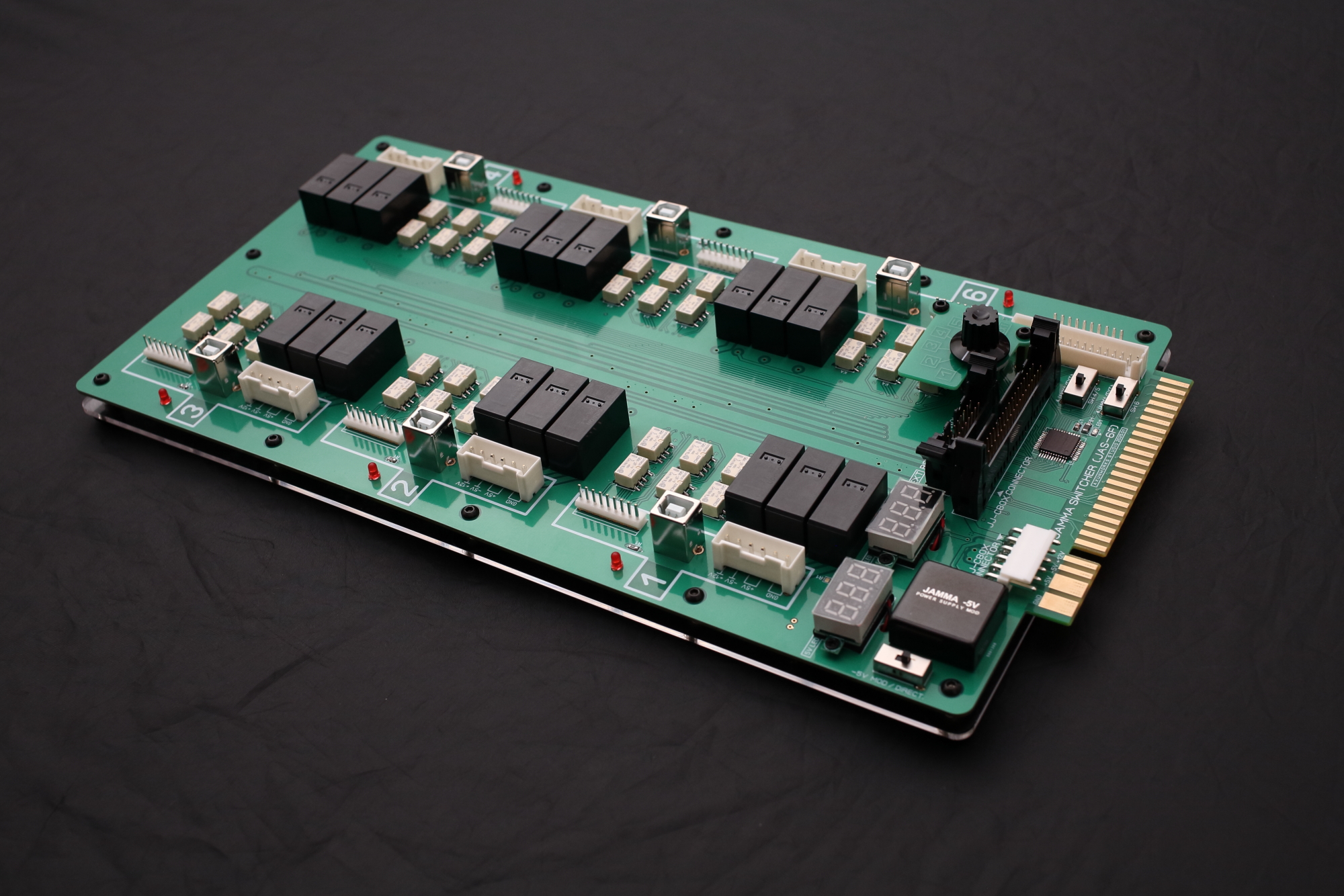

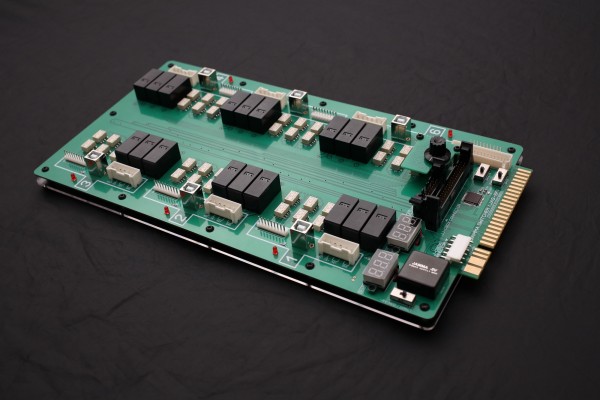

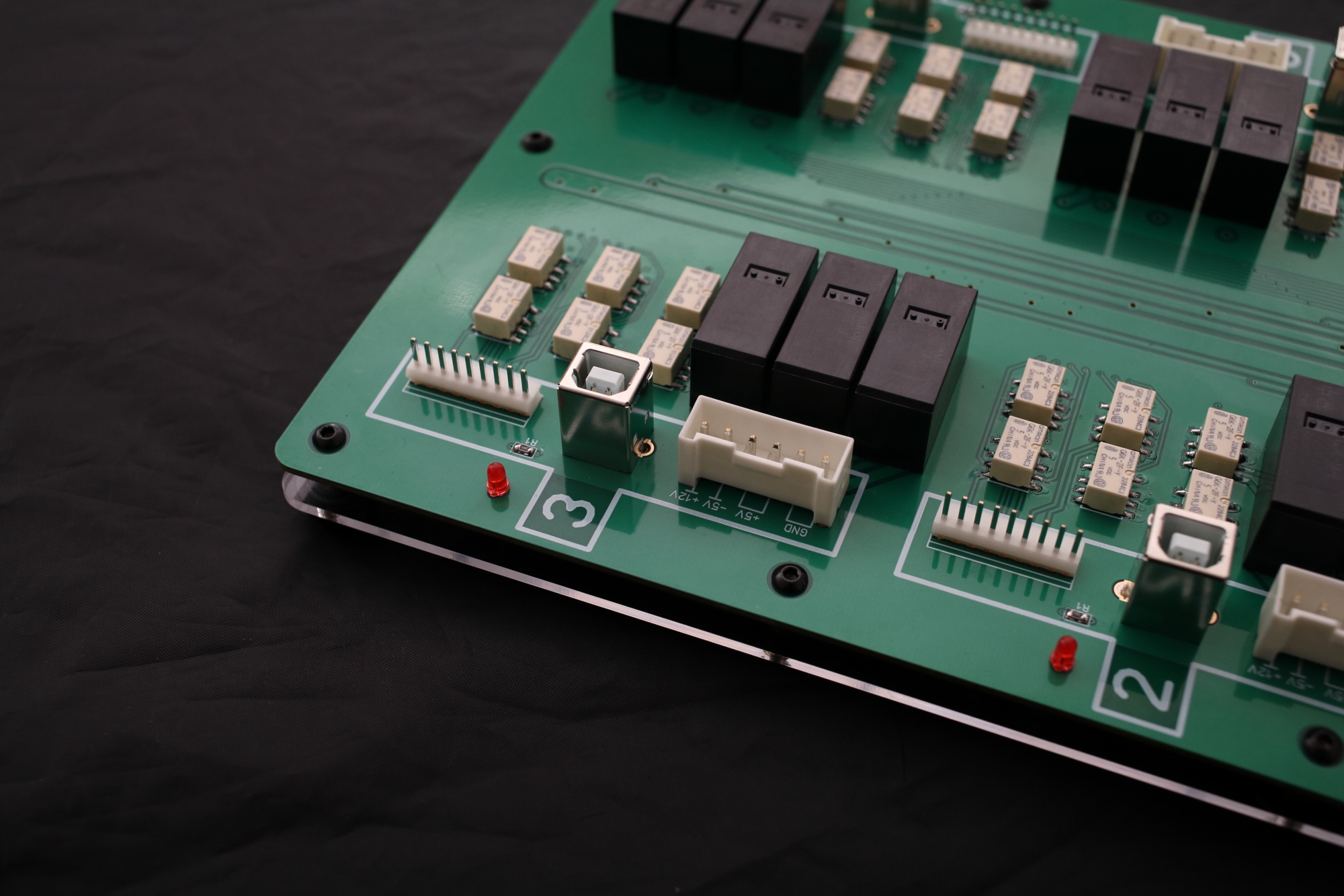

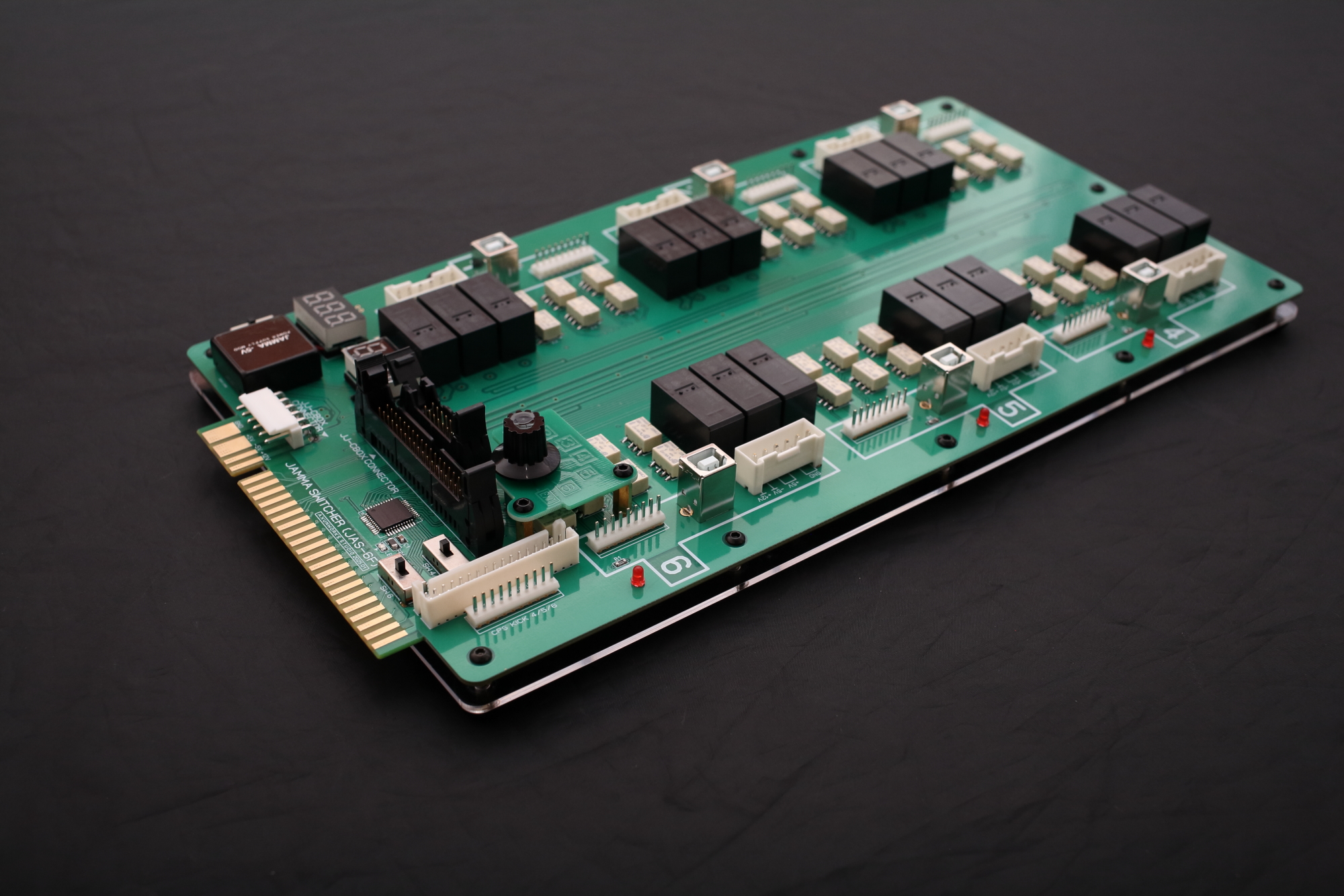

Jamma Switcher (JAS-6F):
This is a control motherboard and a necessary component.
It can connect to the arcade standard jamma to control the power supply, audio and video signals and control signal switching of 6-channel jamma pcb games.
It has -5V mode selection, conversion/pass-through. There are 12v and 5v voltage meters

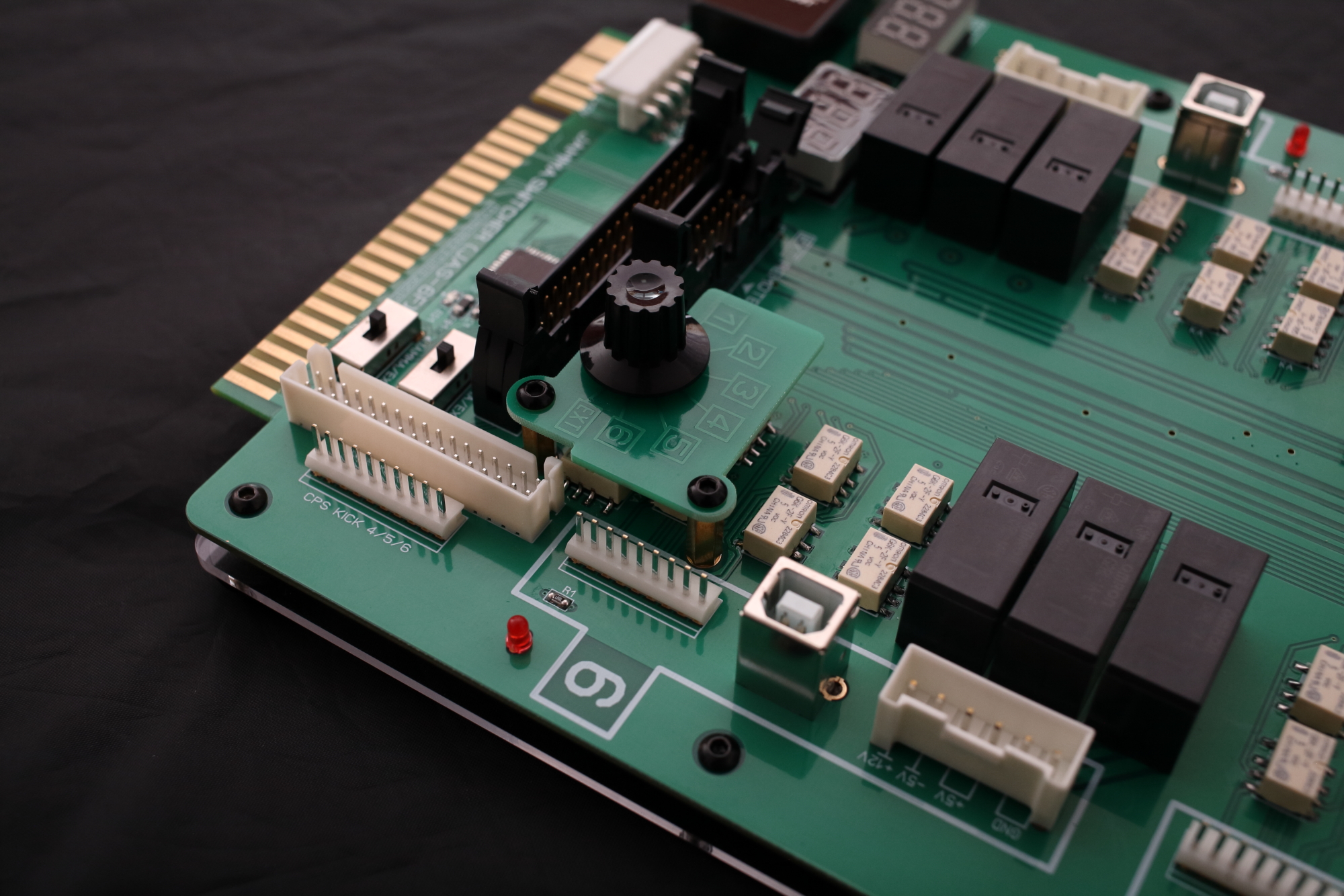

The control motherboard has channel (1-6) and (ext) switching knobs, when the gear is in (ext) (an external wired remote control can be used)
The motherboard not only has a standard jamma interface, but also a jjcbox dedicated interface.
A wired remote control interface, and a cps1/2 kick interface.

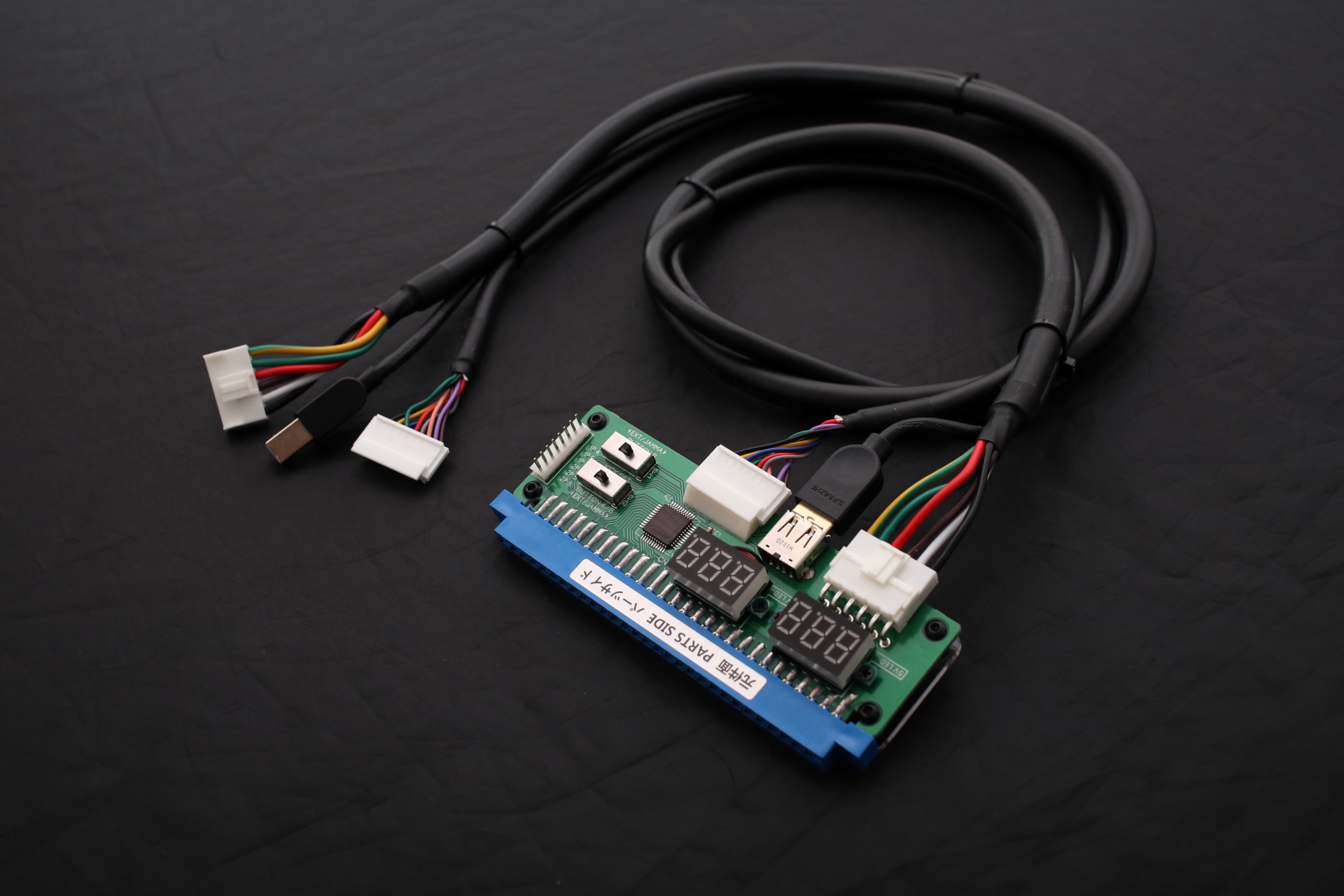

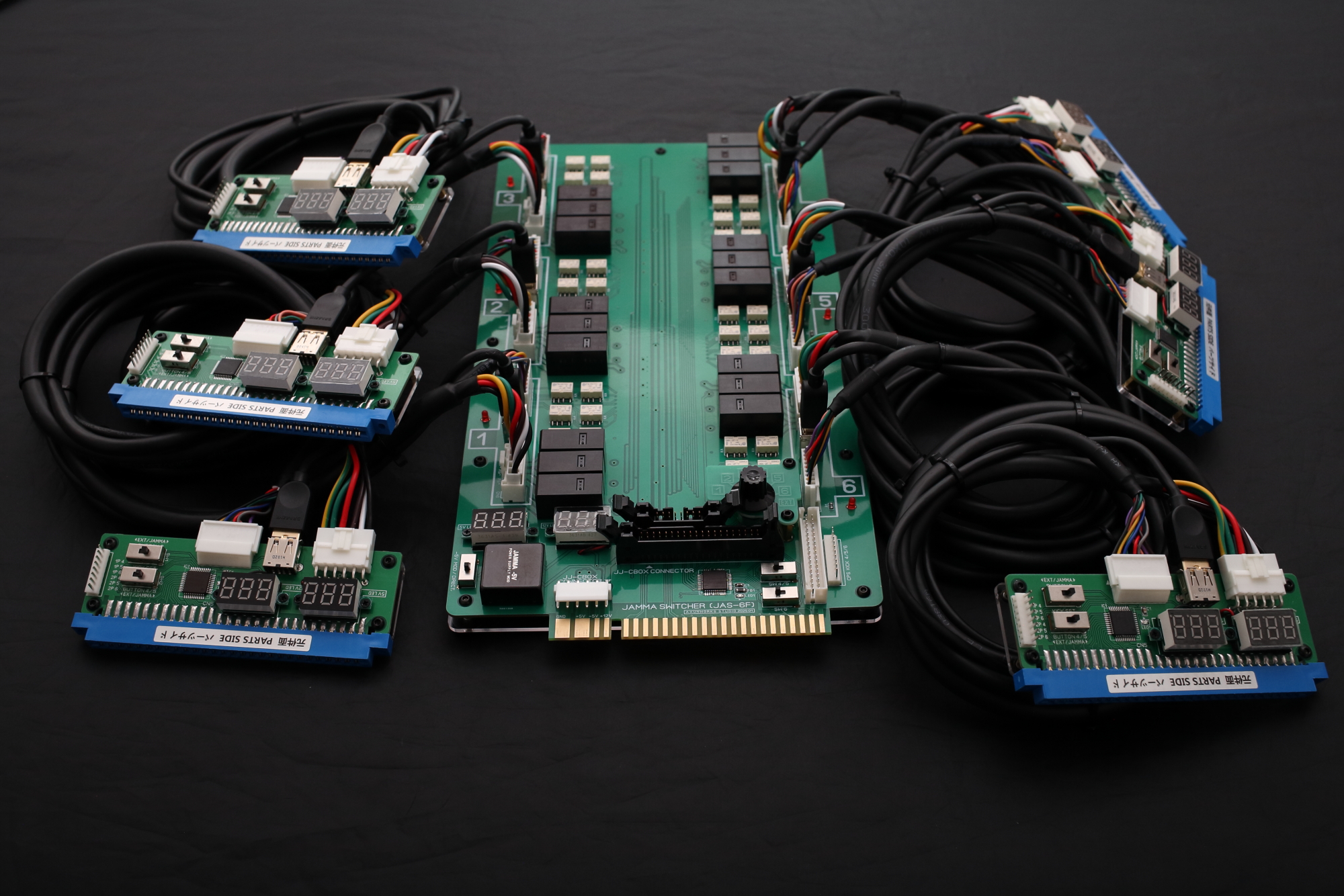

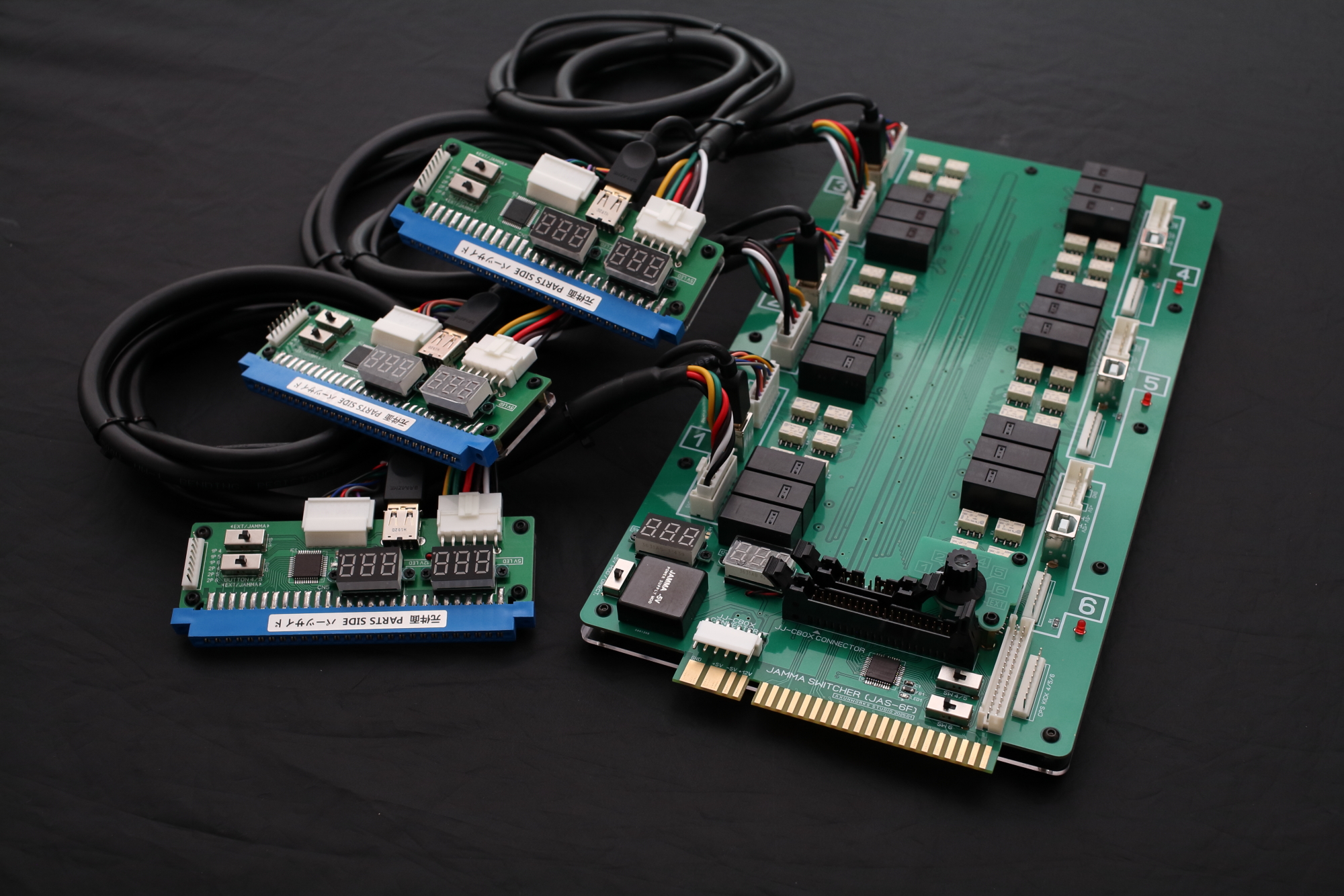

External jamma pcb connector:
The (External jamma pcb connector) in the product options is one piece. For example, if you only need 3 channels, you only need to buy three pieces. If you need to control 6 pcbs, buy 6 pieces.
Its function is similar to that of JAMMA extension, but the other end is a dedicated interface for Jamma Switcher. This dedicated interface allows for more convenient, safe and stable PCB transmission and switching. There are 12v and 5v voltage meters and kick-ext interface on the jamma connection board

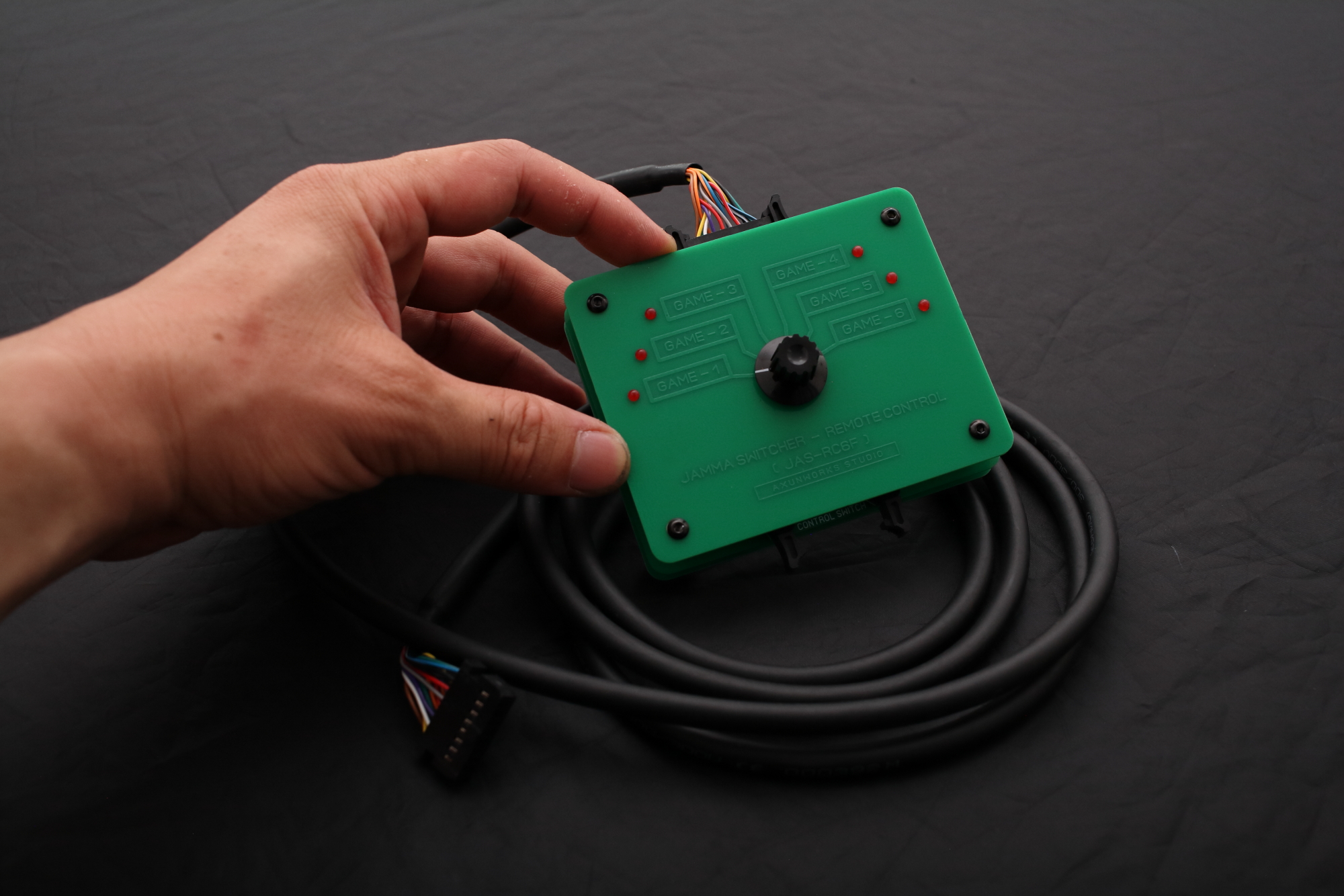

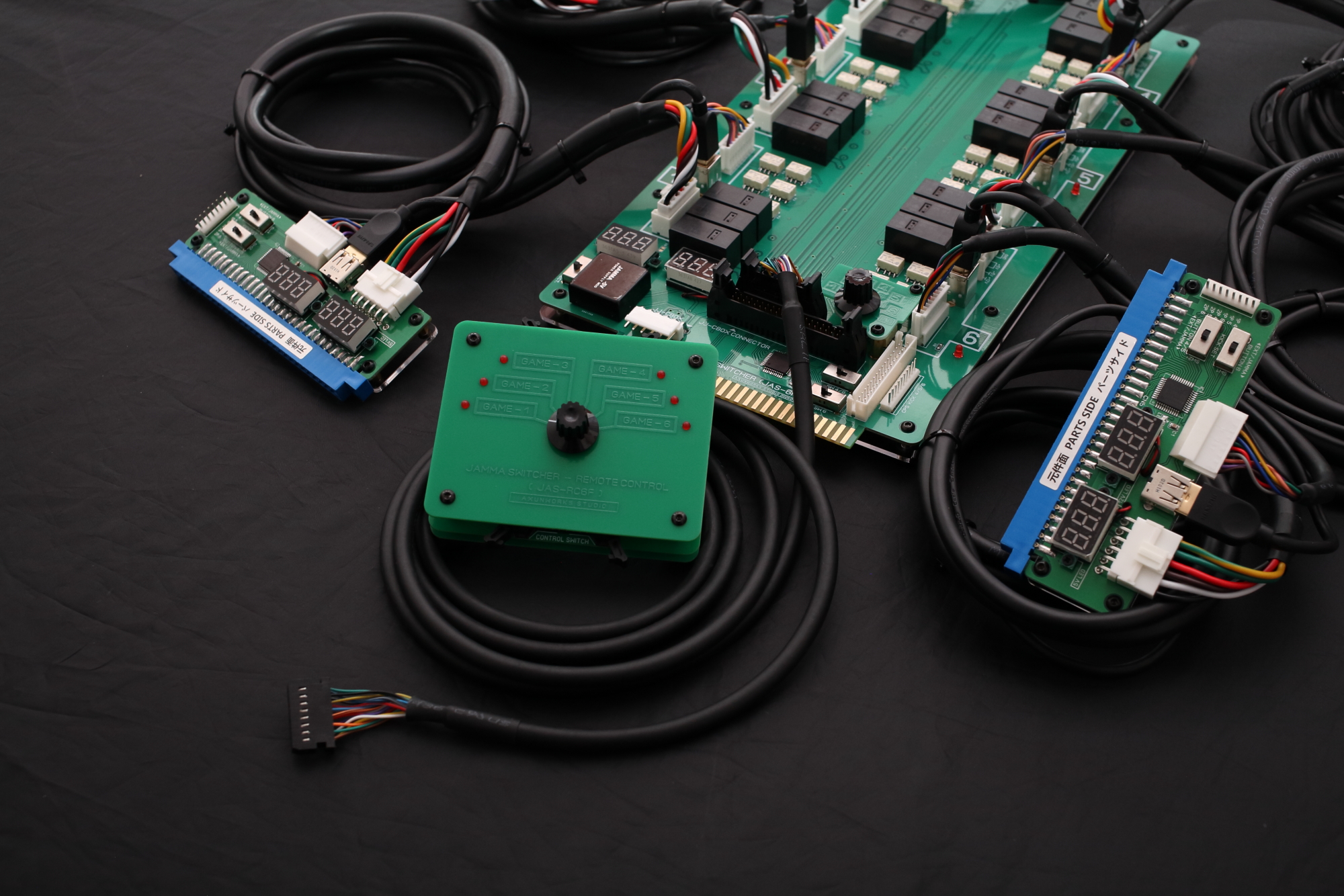

Remote Control (JAS-RC6F):

It is an external controller. It is not a necessary option to purchase, but if you install Jamma Switcher inside the arcade cabinet and you often switch games, then this remote control is recommended. It can be more convenient to switch operations. It can be placed around, or you can DIY and embed the remote control on the panel of the arcade cabinet. There are two wired interfaces with the same function on the remote control (one on the top and one on the bottom). Choose one of the connections that suits your placement. The reserved space next to the channel indicator light can be used to print the game name and paste it

---
